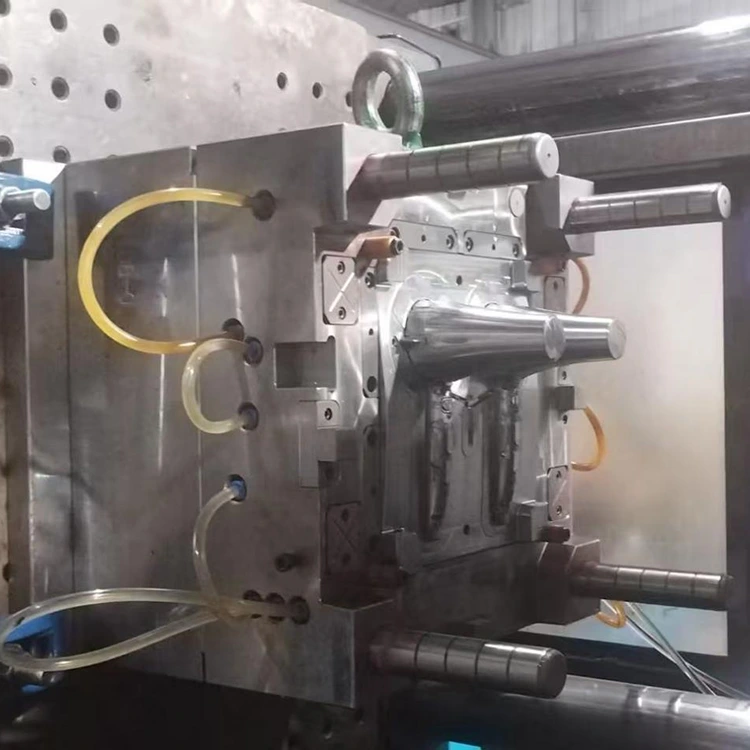

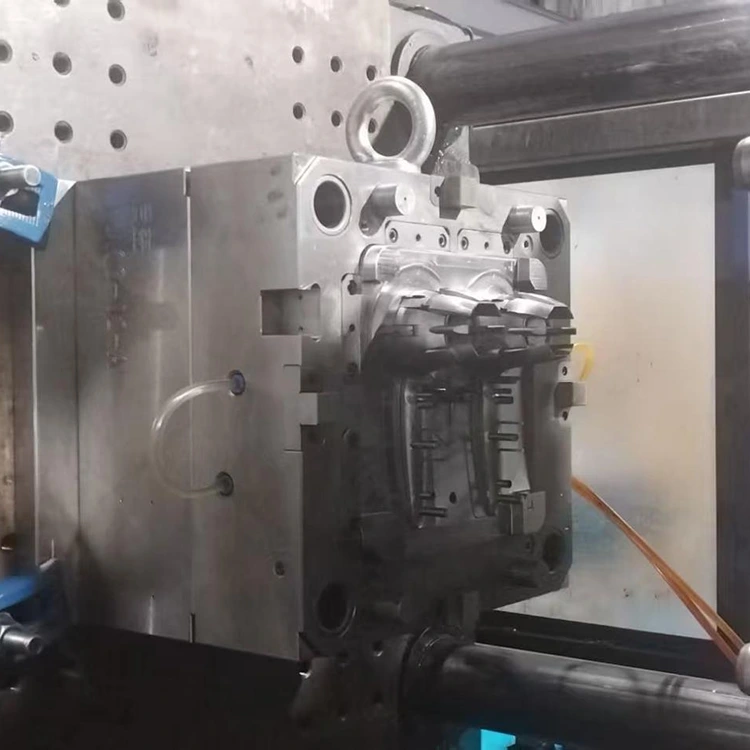

Hair Dryer Housing Injection Mold

As a professional mold manufacturer, Tengrui Mould custom-developed this integrated Hair Dryer Housing Injection Mold. It adopts a two-cavity layout and slider core-pulling structure to form complex housings, ensuring appearance precision and structural strength for high-speed hair dryers, and meeting mass production needs.

Core Selling Points

1. Integrated Molding of Complex Curved Surfaces

Multiple sliders and inserts enable one-time molding of housings with curved surfaces, air inlet mesh and buckles, saving secondary processing procedures and costs.

2. High-Efficiency Mass Production Capacity

Two-cavity design with balanced hot runner system shortens single injection cycle to 35 seconds, greatly boosting production efficiency.

3. High Surface Finish

Mirror-polished cavity ensures no flow marks or weld lines on the shell, meeting high-end home appliance appearance standards.

4. Long Service Life and Durability

Wear-resistant mold steel core components reach HRC52-56 after vacuum heat treatment, with a service life of over 400,000 mold times.

5. Strong Structural Stability

Optimized cooling water channels reduce stress, controlling shell deformation within 0.05mm to adapt to high wind pressure environments.

High-Quality Mold Material Configuration

Tengrui Mould selects premium materials for key parts of the Hair Dryer Housing Injection Mold, ensuring its overall performance:

- Mold Base: S50C carbon steel, offering high rigidity and processability.

- Cavity/Core: NAK80 steel, combining high polishability and anti-deformation.

- Slider/Insert: SKD61 steel, with excellent thermal fatigue and wear resistance.

- Guide Components: SUJ2 bearing steel parts, ensuring precise mold opening/closing.

- Auxiliary Accessories: SKH51 steel ejector pins, high-strength and wear-resistant.

Sophisticated Manufacturing Process

Strict process control guarantees the precision of the Hair Dryer Housing Injection Mold, with key steps as follows:

1. Mold Design: 3D modeling and mold flow analysis optimize runners and cooling systems, reducing defects.

2. Precision Machining: Five-axis CNC, EDM and wire cutting ensure cavity accuracy within ±0.05mm.

3. Surface Treatment: Cavity mirror-polished to Ra≤0.02μm; mold base nitrided for rust resistance.

4. Assembly and Commissioning: Over 500 consecutive mold tests optimize parameters to meet customer standards.

Application Scenarios

This Hair Dryer Housing Injection Mold is mainly used for mass production of high-speed hair dryer housings, and is also adaptable to similar small appliances like handheld garment steamers, with wide compatibility.

Comprehensive Quality Assurance

As a reliable mold supplier, Tengrui Mould provides all-round quality guarantees for the Hair Dryer Housing Injection Mold:

1. Over 500 pre-delivery mold tests for stable molding without flash or deformation.

2. 12-month warranty with free repair/replacement for non-artificial damage.

3. Professional after-sales team offering remote debugging and on-site support.

4. Complete certificates and reports, complying with ISO9001 standards.

Factory Strength

Our factory boasts advanced equipment and a professional R&D team, with rich experience in manufacturing Hair Dryer Housing Injection Molds and other home appliance molds. We offer customized solutions and strict process control, committed to providing high-quality products for global customers.
